설계특징

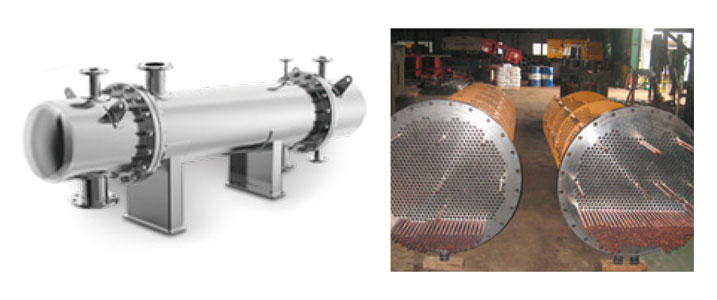

높은 전열성을 위한 튜브와 버플 적용
Tube and baffle applied for high heat transfer
냉각수 수질에 관계없이 냉각 효과 제공
Provides cooling effect regardless of cooling water quality
주문에 따라 분리형 구조 제작
Manufacture of detachable structure according to order
사용 유체에 따라 스테인리스 재질 제작
Manufacture of stainless steel depending on fluid used
-
DESIGN CONDITION
Max. Air Inlet Temperature : 200℃
Pressure Drop : 0.15 bar
Water Condition : 32℃, 3.0 bar
Standard Material : Carbon Steel / Copper
TECHNICAL SPECIFICATIONS
Flow Condition : Inlet | Temp. : 90℃
Inlet Pressure : 7.0 bar | Water : 3.0 bar. 32℃
가로 화면을 왼쪽으로 밀어서 전체 내용 보실 수 있습니다.
| Model | Flow Capacity ( Nm³/hr ) | Connection | Dimension | Weight | |||
|---|---|---|---|---|---|---|---|
| 170℃ | 120℃ | 90℃ | Air | Water | L×W×H ( mm ) | ( Kgs ) | |
| PAW - 130 | 100 | 116 | 130 | 25A(S) | 15A(S) | 820 × 90 × 250 | 25 |
| PAW - 350 | 250 | 290 | 350 | 50A(S) | 20A(S) | 1,000 × 165 × 600 | 45 |
| PAW - 680 | 480 | 580 | 680 | 50A(S) | 25A(S) | 1,600 × 165 × 600 | 95 |
| PAW - 1500 | 960 | 1,300 | 1,500 | 80A(F) | 25A(S) | 2,000 × 220 × 660 | 150 |
| PAW - 2600 | 1,700 | 2,300 | 2,600 | 100A(F) | 40A(S) | 2,300 × 270 × 690 | 310 |
| PAW - 5000 | 3,300 | 4,400 | 5,000 | 100A(F) | 50A(S) | 3,100 × 270 × 690 | 360 |
| PAW - 5400 | 4,200 | 4,800 | 5,400 | 65A(F) | 50A(S) | 2,200 × 360 × 920 | 400 |
| PAW - 6900 | 5,600 | 6,300 | 6,900 | 150A(F) | 65A(F) | 3,000 × 360 × 920 | 450 |
| PAW - 6900 | 5,600 | 6,300 | 6,900 | 150A(F) | 65A(F) | 3,000 × 360 × 920 | 450 |
| PAW - 9000 | 7,200 | 8,200 | 9,000 | 150A(F) | 80A(F) | 3,300 × 410 × 1,100 | 700 |
| PAW - 11000 | 8,400 | 9,800 | 11,000 | 200A(F) | 100A(F) | 3,700 × 460 × 1,300 | 830 |
| PAW - 14000 | 11,000 | 12,700 | 14,000 | 200A(F) | 125A(F) | 3,900 × 460 × 1,300 | 1,100 |
| PAW - 19000 | 15,600 | 17,400 | 19,000 | 250A(F) | 150A(F) | 4,500 × 610 × 1,700 | 1,600 |
| PAW - 28000 | 23,000 | 25,800 | 28,000 | 300A(F) | 150A(F) | 6,200 × 710 × 1,900 | 2,000 |
* 주의사항 : 상기 사양은 예고없이 변경될 수 있으니 사전에 문의하시기 바랍니다. Caution : Please contact us in advance as the above specifications may be changed without notice.
